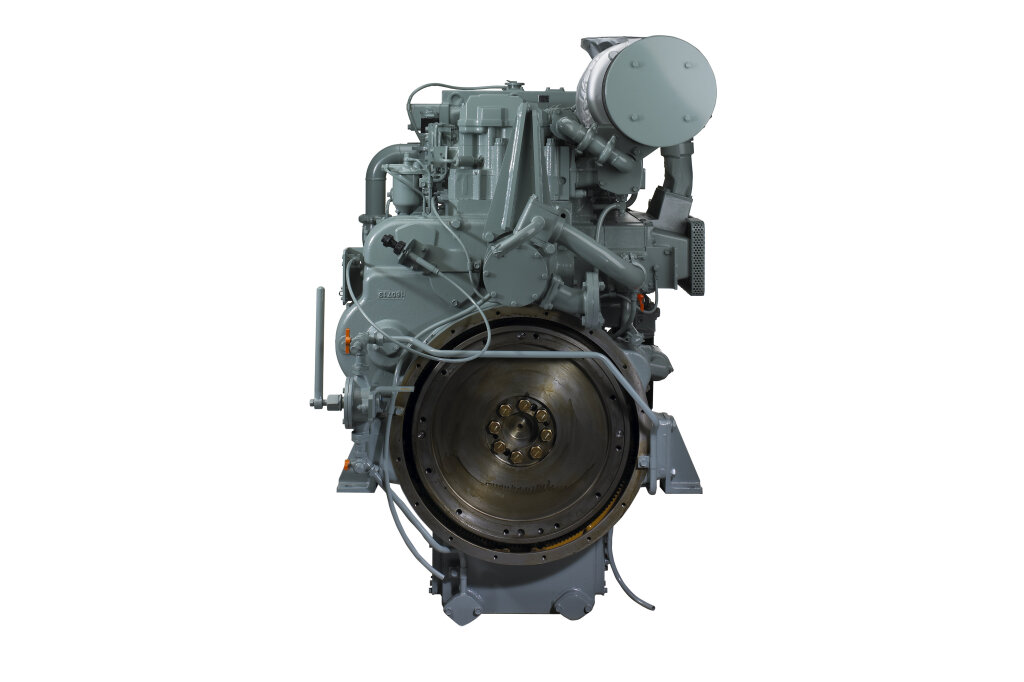

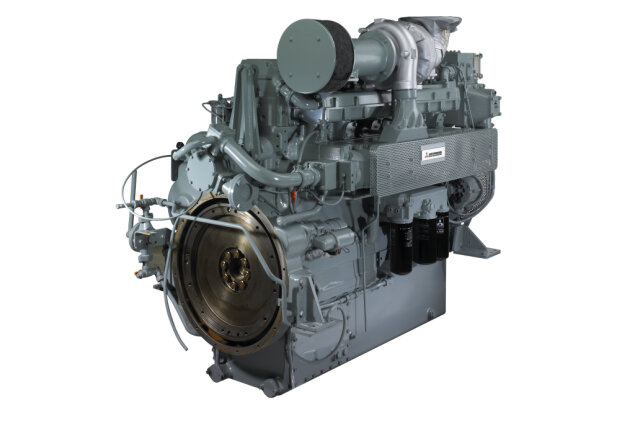

Mitsubishi Marine S6R2-T2MPTK3 MD

Marine inboard engine

Rating MD
Power 759 kW
Max RPM 1406 RPM
Number of cylinders 6
Layout of cylinders in line
Total displacement 29960 cc
Cylinder diameter 170 mm
Cylinder stroke 220 mm
Compression ratio 14.0:1
Dry weight without gearbox 3130 Kg
Longitud total 2105 mm
Total width 1183 mm
Total height 1695 mm
