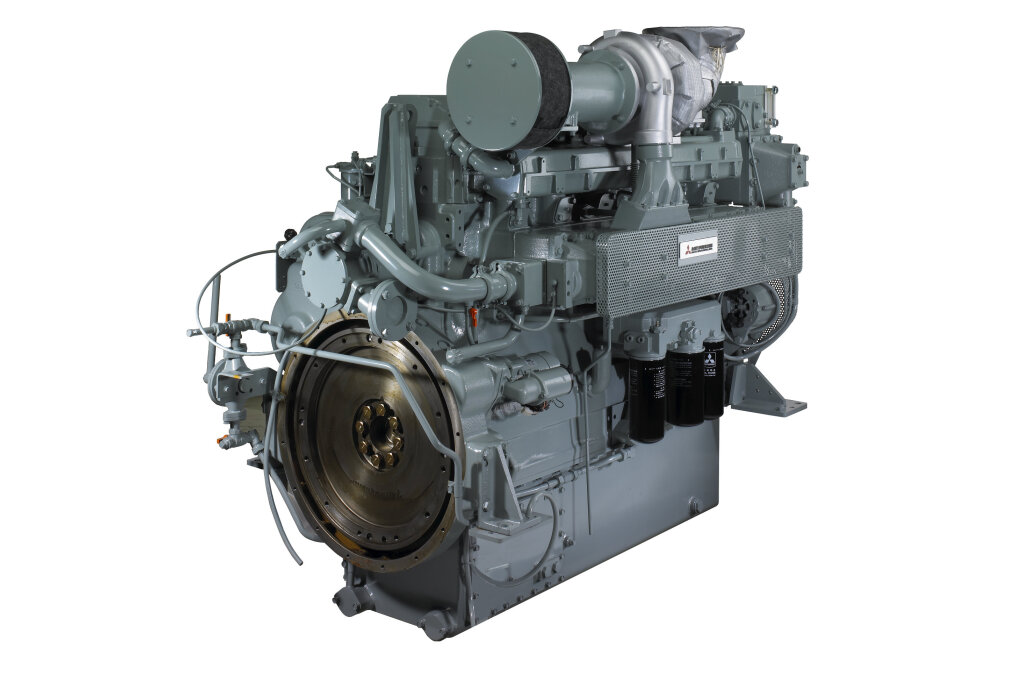

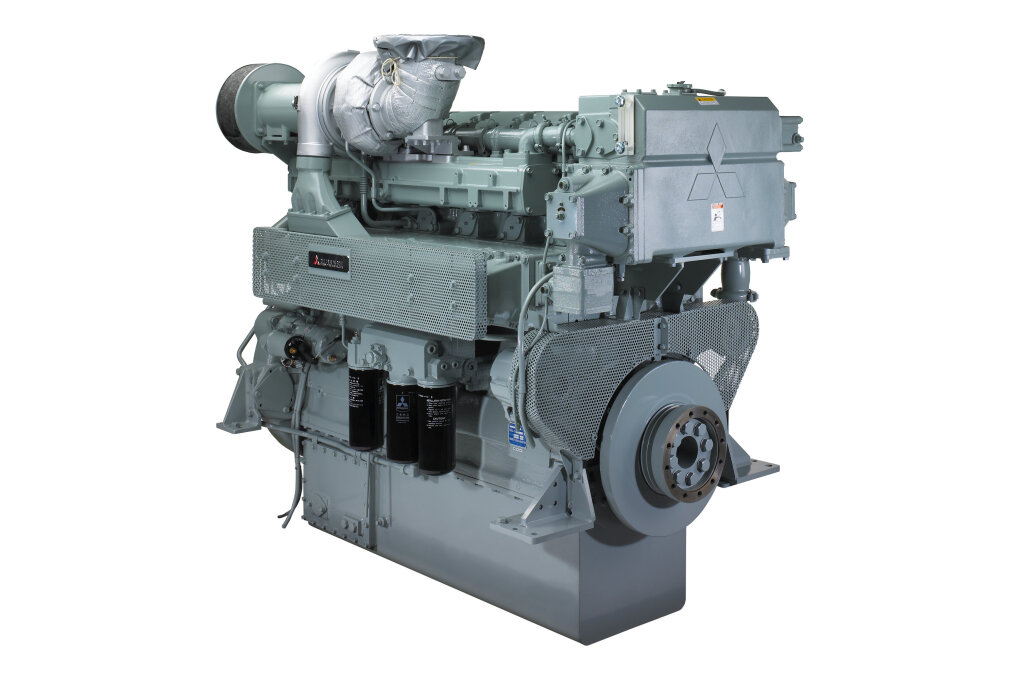

Mitsubishi Marine S6R2-T2MPTK3 HD
Marine inboard engine
| Rating | HD |
|---|---|
| Power | 691 kW |
| Max RPM | 1406 RPM |
| Number of cylinders | 6 |
| Layout of cylinders | in line |
| Total displacement | 29960 cc |
| Cylinder diameter | 170 mm |
| Cylinder stroke | 220 mm |
| Compression ratio | 14.0:1 |
| Dry weight without gearbox | 3130 Kg |
| Longitud total | 2105 mm |
| Total width | 1183 mm |
| Total height | 1695 mm |
