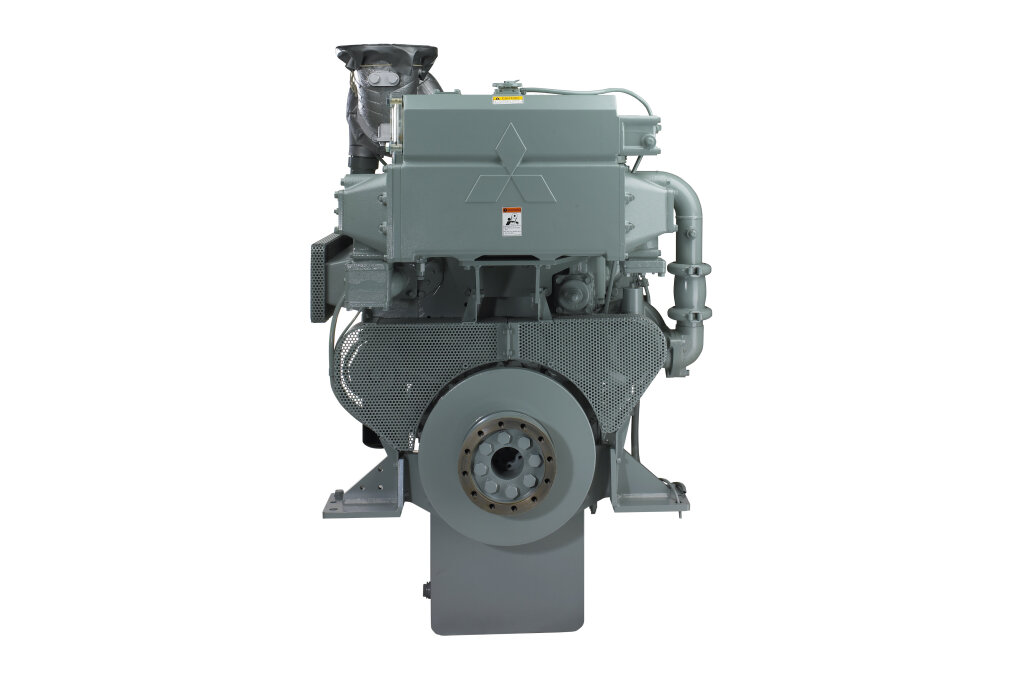

Mitsubishi Marine S6R-T2MPTK HD
Marine inboard engine
| Rating | HD |
|---|---|
| Power | 520 kW |
| Max RPM | 1650 RPM |
| Number of cylinders | 6 |
| Layout of cylinders | in line |
| Total displacement | 24510 cc |
| Cylinder diameter | 170 mm |
| Cylinder stroke | 180 mm |
| Compression ratio | 14.5:1 |
| Dry weight without gearbox | 2950 Kg |
| Longitud total | 2122 mm |
| Total width | 1202 mm |
| Total height | 1615 mm |
